RISC-V ISA
What is ISA?
ISA: Instruction Set Architechture
- Defined group of commands and operations
- To communicate software and hardware
- Different from micro-architechture
What is RISC-V?
An open-source ISA standard
Official website: https://riscv.org/
RISC: Reduced Instruction Set Computing
More ISAs: X86, ARM, Power, MIPS, SPARC…
Goals in Defining RISC-V
- open
- real
- avoiding over-architeching
RISC-V 听着有点像汇编语言界的 C 语言，简单又原始
User-Level ISA
A mandatory base integer ISA
- I: Integer instruction
- Standard extensions
- M: Integer Multipliaction & Division
- F: FP
- D: DP
- ect
- Optional extensions
RISC-V assembly language

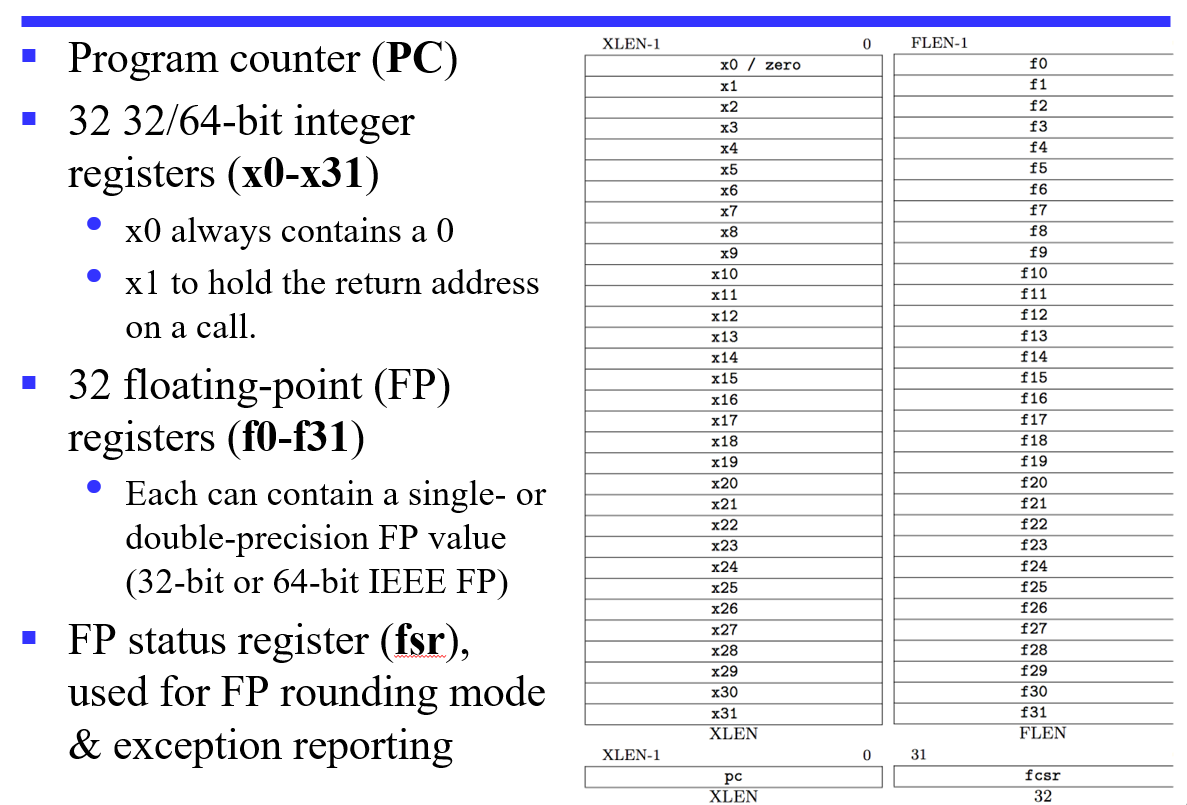

RISC-V Processor State
32 64-bit integer registers (x0 - x31)

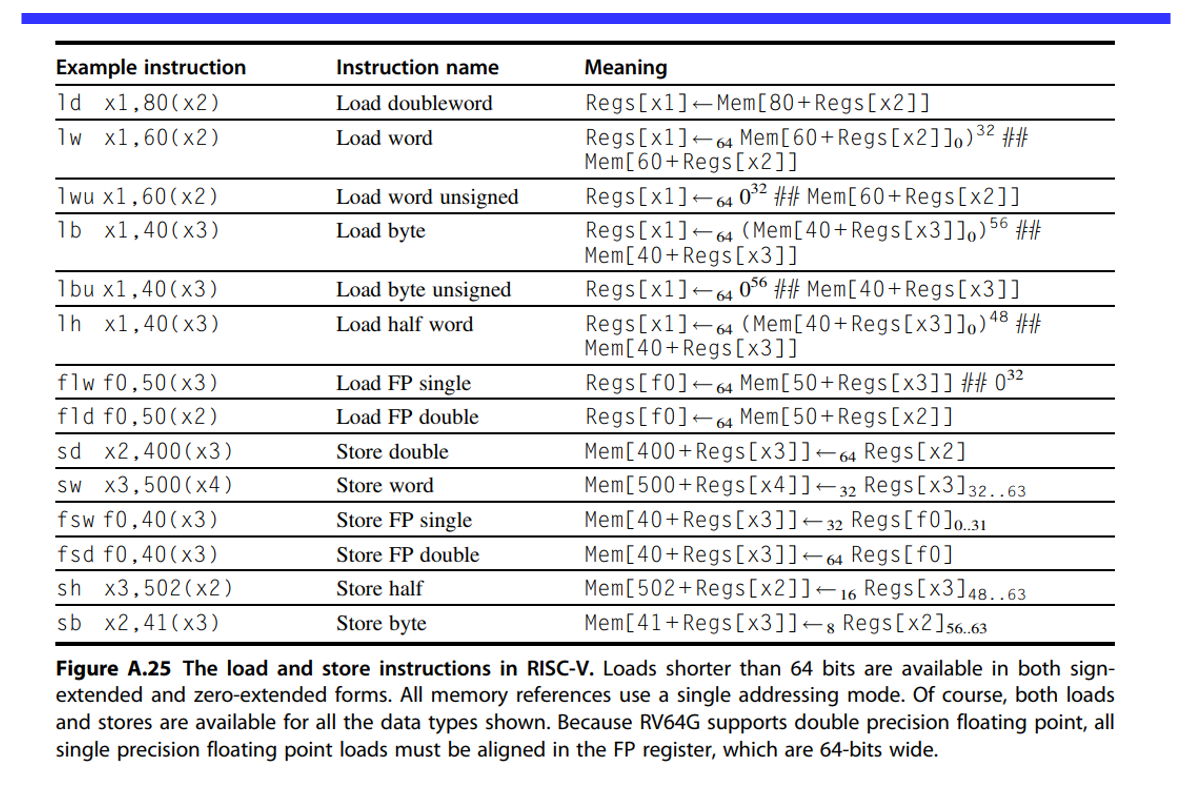

Load/Store Instruction

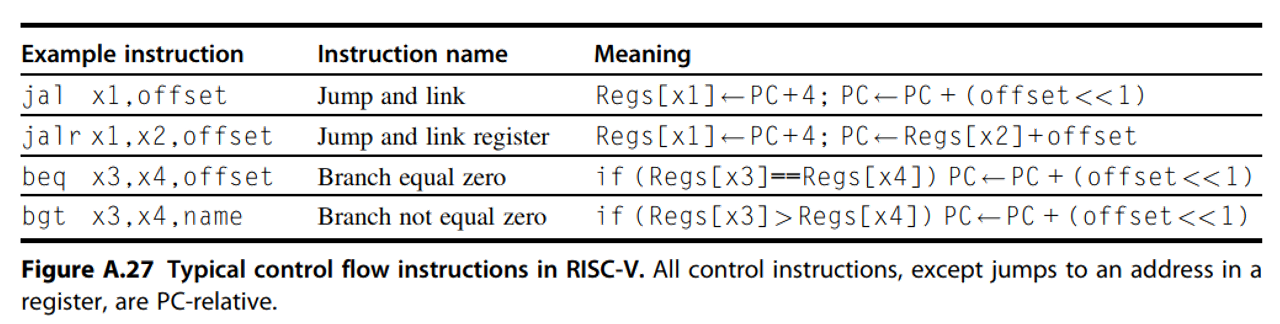

Control Transfer Instruction

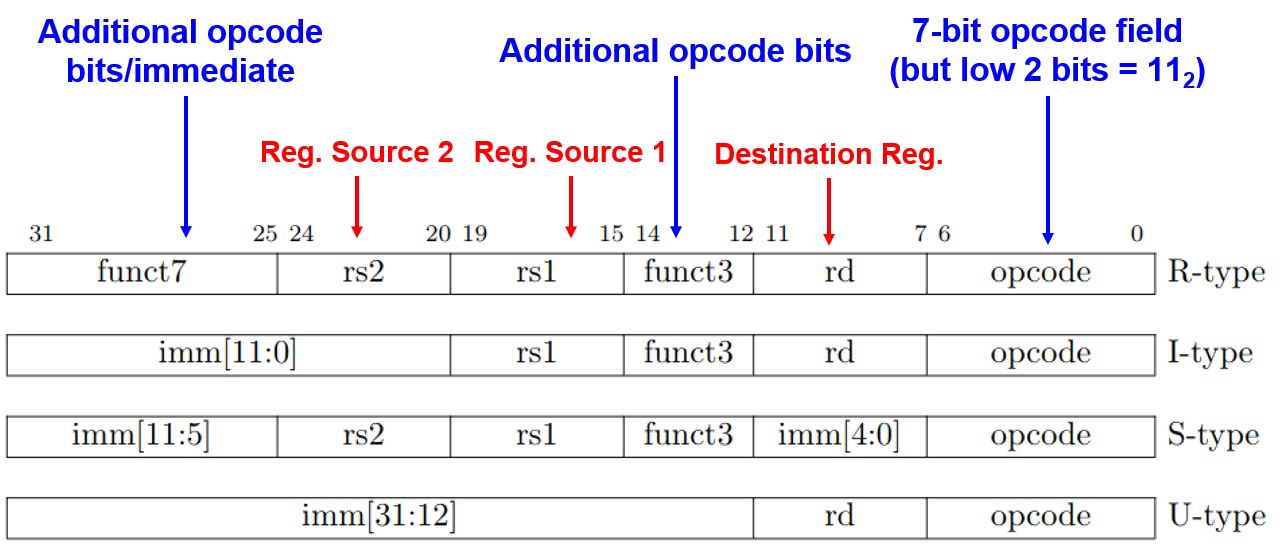

RISC-V Instruction Formats
https://github.com/riscv/riscv-opcodes/
RISC-V referrence card
- ALU Instruction: R-Type
- ALU Instruction: I-Type
- Load/Store Instruction: I/S-Type
- Control Transfer Instruction: J-Type
